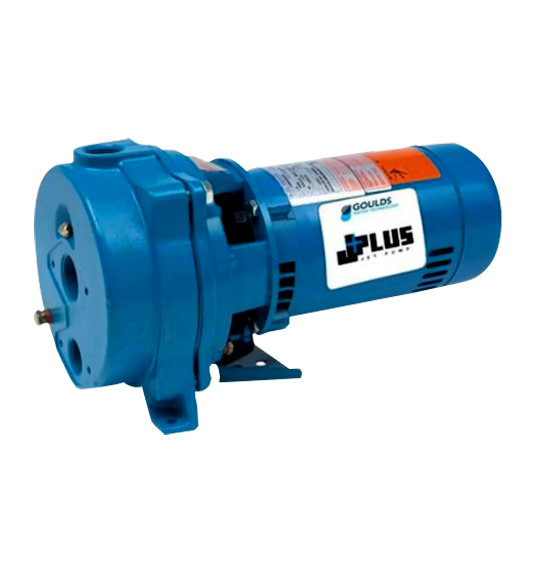

Goulds Convertible Jet Pump J10+ (1hp)

Goulds J+ Series pump is a convertible type of pump, which may be used on shallow or deep well application with appropriate goulds pump fittings.

Specifications
• Capacities: min. capacity of 17.5 to max. of 26.6 gpm and min. of 20 to max. of 60 psi, at 5 foot suction lift for shallow well
• Capacities: ranges from 2.8 to 24.4 gpm versus head of 30 to 170 feet at 5 foot submergence of jet assembly for vertical deepwell
• Reprime capabilities: 25 foot suction lift
• Pressure switch: preset (30-50 psi)
• Max. water temp.: 140°F (60°C)
• Pipe connection: 1 1/4″ npt x 1″ npt, suction and discharge
• Motor rating: ranges from 1/2 to 1- 1/2 hp, 115/230V, single phase, 3500RPM, 60hz, Nema Standard
• Available 2″ to 3″ well casing
