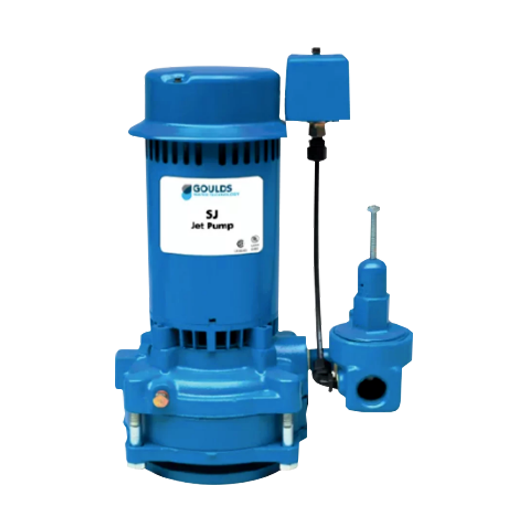

Goulds Vertical Jet Pump Deep Well SJ10 (1hp)

Specifications
• Capacities: ranges from 4 to 16.3 gpm versus head of 30 to 230 feet at 5 foot submergence of jet assembly for vertical deepwell
• Reprime capabilities: 25 foot suction lift
• Pressure switch: preset (30-50 psi)
• Max. water temp.: 140°F (60°C)
• Pipe connection: 1 1/4″ npt x 1″ npt, x 1″ npt, suction and discharge & drive pressure
• Motor rating: ranges from 3/4 to 2hp, 115/230V, single phase, 3500RPM, 60hz, Nema Standard
• Available 2″ to 4″ well casing
