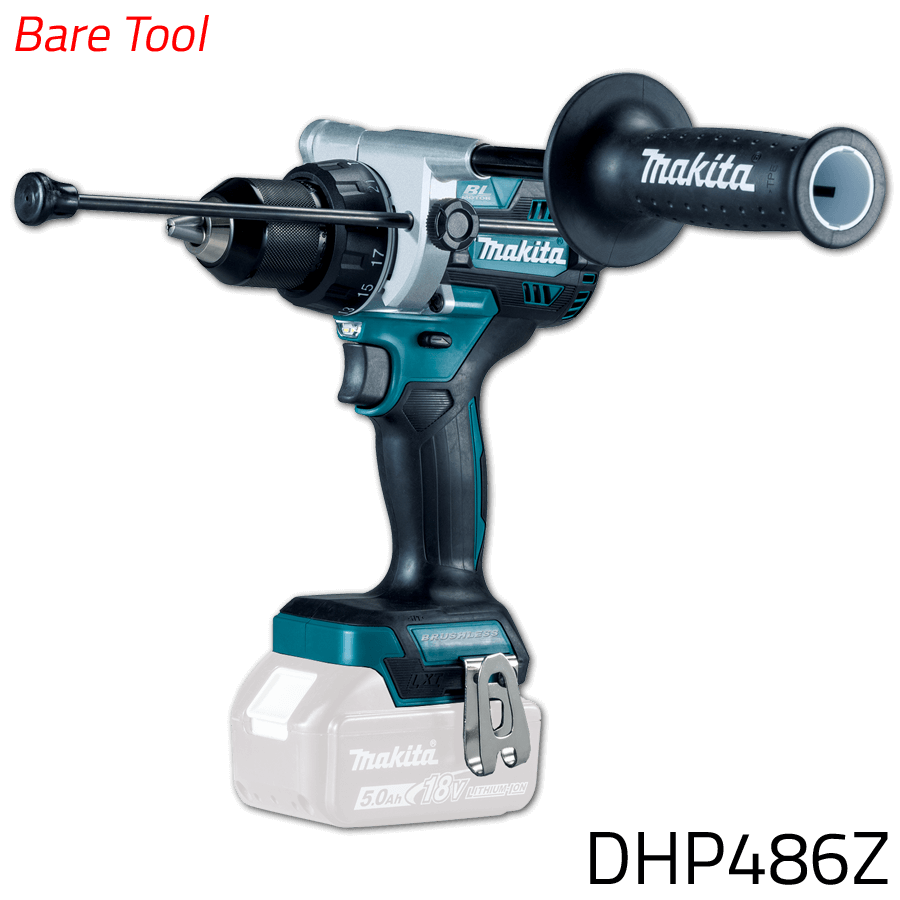

Makita 13mm (1/2″) 125 N·m (1,100 in.lbs.) Cordless Hammer Driver Drill 18V LXT® Li-Ion [Bare Tool] DHP486Z
Features:
• Increased performance in continuous heavy-duty applications
• Increased max clutch torque enables to adjust clutch torque even when tighteningfasteners into hard material
• Compact and ergonomic design at only 178 mm long

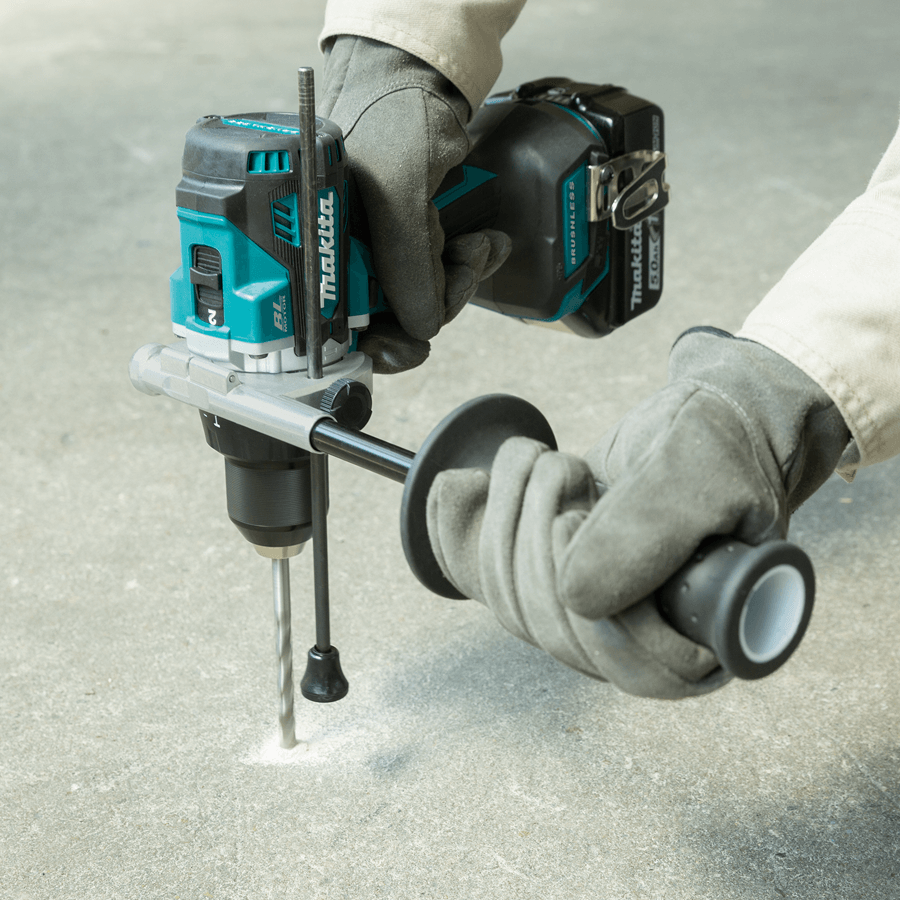

• 0-31,500 IPM for fast hammer drilling in masonry materials
• BL motor delivers 125 N·m of max torque
• BL motor is electronically controlled to optimize battery energy use for longer run time per charge
• BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
• All metal variable 2-speed transmission (0-550 & 0-2,100 RPM) for a wide range of drilling, fastening and hammer drilling applications
• All metal gears and gear housing for maximum job site durability
• All metal 13 mm self ratcheting chuck for improved bit gripping strength and durability
• Lightweight for reduced operator fatigue
• 21 clutch settings and drill mode for added fastening control
• 3-stage LED gauge indicates battery charge level
• Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• Twin LED lights with afterglow feature illuminate the work area
• Electric brake for maximum productivity
• Reversing switch is conveniently located
• Keyless chuck for quick and easy bit installation and removal
• Depth gauge for increased drilling consistency.
• Durable, reversible belt clip convenient for temporary tool hanging.
• Battery protection circuit protects against overloading, over-discharging and over-heating
Standard Equipments:
Depth Gauge, Side Handle, Belt Clip
Specifications:
Capacity: wood (auger-bit): 50 mm (2″)
Wood (hole saw): 152 mm (6″)
Siding board: 170 mm (6-11/16″)
Chuck capacity: 1.5 – 13 mm (1/16 – 1/2″)
Impacts per minute (ipm): high / low: 0 – 31,500 / 0 – 8,250
High: 0 – 31,500
Low: 0 – 8,250
No load speed (rpm): high / low: 0 – 2,100 / 0 – 550
High: 0 – 2,100
Low: 0 – 550
Max fastening torque hard / soft: 130 / 65 n·m (1,150 / 580 in.Lbs.)
Hard / soft: 130 / 65 n·m
Max lock torque: 125 n·m (1,100 in.Lbs.)
Max output: 680 w
Vibration level: impact drilling into concrete: 8.0 m/s²
Drilling into metal: 2.5 m/s² or less
Vibration k factor: impact drilling into concrete: 1.5 m/s²
Drilling into metal: 1.5 m/s²
Sound pressure level: 84 db(a)
Sound power level: 95 db(a)
Noise k factor: 3 db(a)
Dimensions (l x w x h): w/o battery: 178 x 81 x 217 mm (7 x 3-3/16 x 8-1/2″)
W/ bl1815n / bl1820b: 178 x 81 x 248 mm (7 x 3-3/16 x 9-3/4″)
W/ bl1830b / bl1840b / bl1850b / bl1860b: 178 x 81 x 265 mm (7 x 3-3/16 x 10-3/8″)
Net weight: 2.3 – 2.7 kg (5.1 – 6.0 lbs.)
