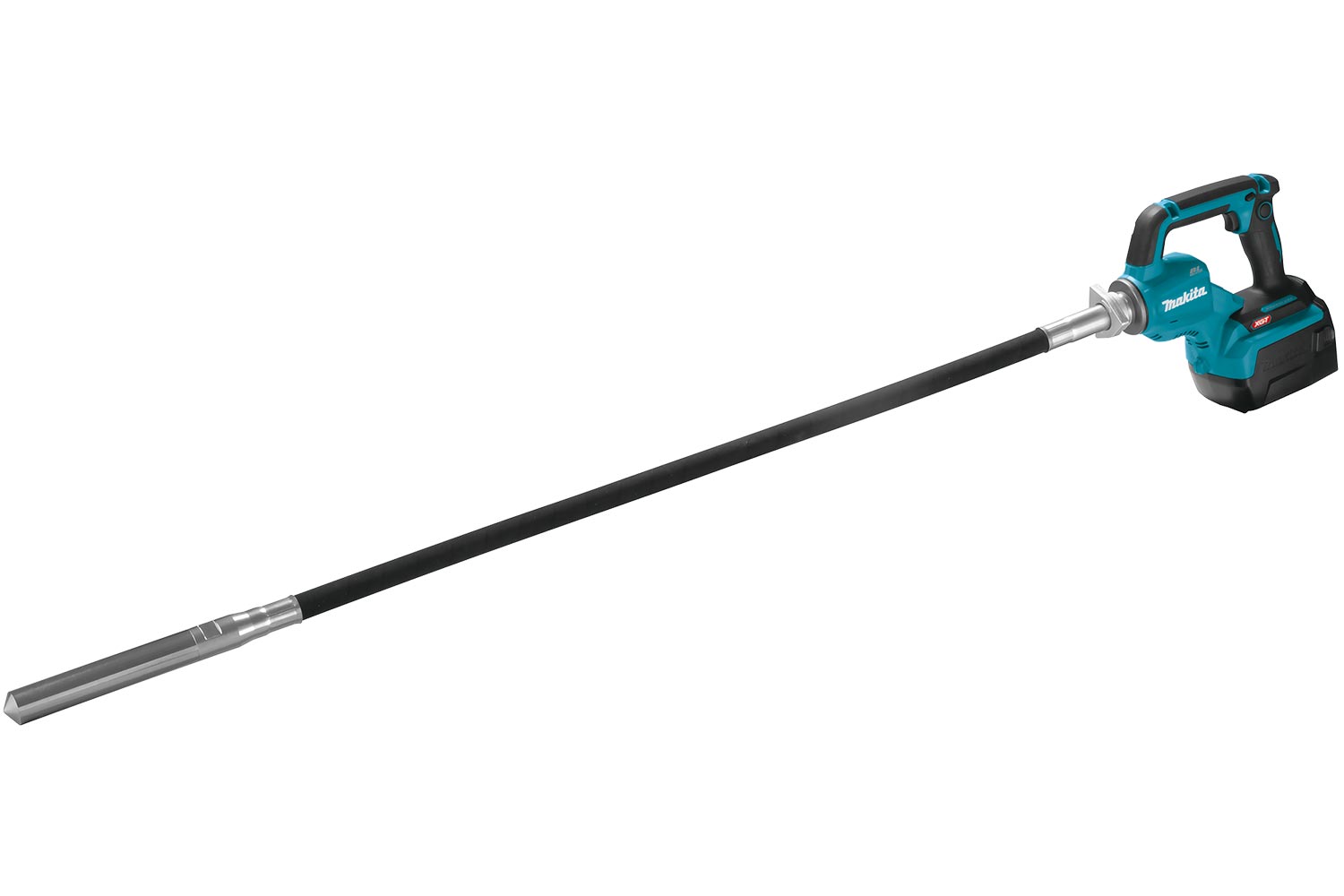

Makita 2.4 m (7.9 ft) 38 mm (1-1/2″) 15,500 VPM Cordless Concrete Vibrator 40Vmax XGT™ Li-Ion/PDC01/PDC1200 [BARE TOOL] VR004GZ

In stock

Features:
• 40Vmax XGT Cordless 38 mm (1-1/2″) Concrete Vibrator
• Compatible with large diameter shafts
• VR001G series supports a larger vibration part diameter than the current model and transmits vibration to a wider range to improve compaction efficiency thanks to 40Vmax XGT Li-Ion battery and BL motor
• Flexible shafts from ø28 to ø38 are suitable for a wide range of jobsites
• Two power mode selection (normal/power) allows to use the machine for a wide range of jobsites:
• Power mode: For a wide range of concrete compaction, such as of soil floors, pillars, and mat foundations
• Normal mode: Ideal for delicate works, such as step finishing or closure of temporary construction openings, where concrete is required not to flow out of the mold
• With Flexible shaft ø38-1.2m or ø38-2.4m
• Constant speed control allows for stable compaction work
• Switch cover protects switch trigger and lock-on button from being blocked by adhered and hardened material such as concrete
• Various Battery covers are available for all recommended or compatible batteries
• The supplied Battery cover is compatible with BL4020/BL4025/BL4040
• The following Battery covers are also available as an option:
• Battery case L set for BL4050F/BL4080F
• Battery case H set for PDC01/PDC1200
• Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• Shoulder strap (sold separately) can be attached
• Ergonomically designed handle fits your hand well
• Lock-on switch reduces hand fatigue in long continuous operation
• Trigger lock minimizes accidental start-up during transportation
• Battery capacity warning lamp indicates ideal time to recharge battery
• Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on
• Flexible shaft thread size
• Flexible core shaft: M6 x 1.0
• Coupling of Outer casing: M36 x 1.5
• Battery protection circuit protects against overloading, over-discharging and over-heating
• Battery and charger are sold separately.

Standard Equipments:
Wrench 8 781213-9(1)

Specifications:
Max output: w/ pdc1200: 550 w
Vibrator diameter: 38 mm
Flexible shaft length: 1,2, 2,4 m
Vibrations per minute (vpm):
Power mode: 15.500
Normal mode: 12.000
Work amount on a full battery charge:
W/ 28mm-0.8m shaft, w/ bl4040, power mode: 45 min
W/ 28mm-0.8m shaft, w/ bl4040, normal mode: 60 min
Vibration level: 4,9 m/s²
Vibration k factor: 1,5 m/s²
Sound pressure level: 80 db(a)
Noise k factor: 3 db(a)
Dimensions (l x w x h): w/o flexible shaft, w/ bl4020/bl4025/bl4040: 282 x 112 x 258 mm
W/o flexible shaft, w/ bl4050f/bl4080f and battery case l set: 296 x 112 x 299 mm
Net weight: 4.8 – 7.8 kg
