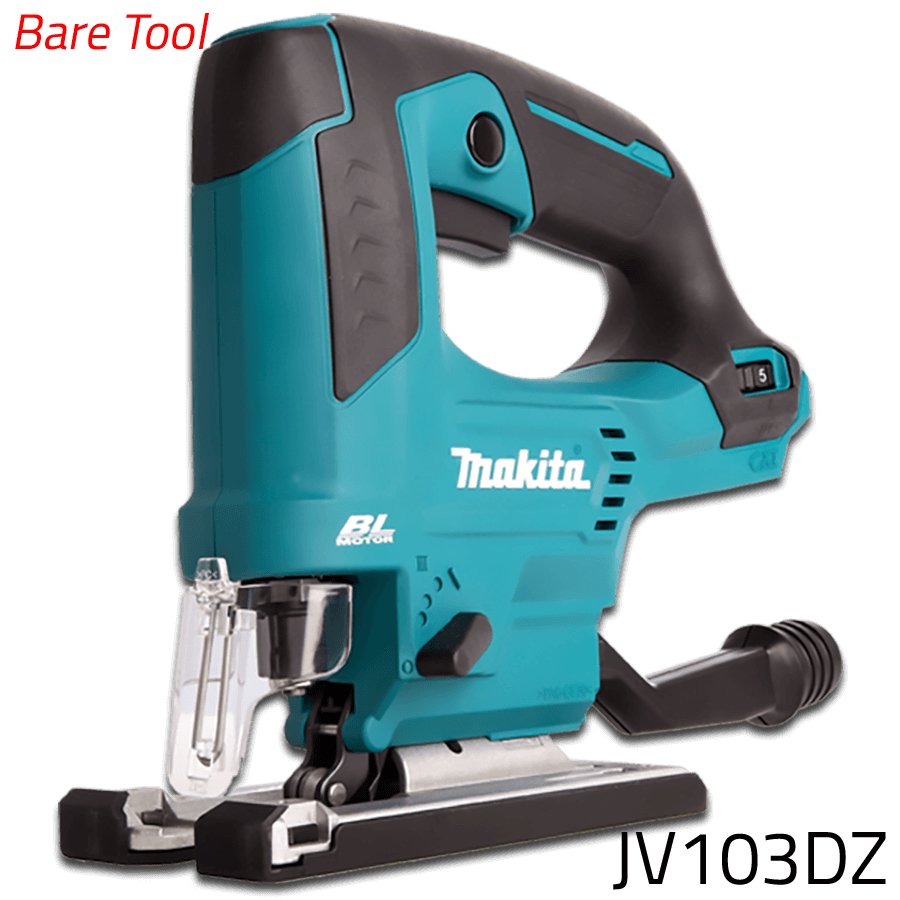

Makita 23mm Cordless Jig Saw 12Vmax CXT™ Li-Ion [Bare Tool] JV103DZ
Features:
• Up to 2.2X Faster Cutting and 2.2X Longer Runtime*¹
• Disabling soft no-load rotation function in operator’s preference
• Soft no-load rotation reduces vibration and aligns blade with the cutting line easily
• Toolless blade clamp for easy blade change
• Independent dust nozzle can be attached for connection to Makita vacuum cleaner and doesn’t require to be removed even when bevel cutting
Saw Blade, Hex Wrench, Cover Plate (country-specific), Dust Nozzle (country-specific), Dust Cover (country-specific)
*1 Plywood (12×300 mm) cutting without orbital action, compared with JV101D
Specifications:
Max cutting capacity at 90°: wood / aluminum / mild steel: 90 / 20 / 10 mm (3-1/2″ / 13/16″ / 3/8″)
Length of stroke: 23 mm (7/8″)
Strokes per minute (spm): 800 – 3,000
Vibration level: cutting boards: 8.5 m/s²
Cutting sheet metal: 6.0 m/s²
Sound pressure level: 85 db(a)
Sound power level: 96 db(a)
Dimensions (l x w x h): 237x76x206 mm (9-3/8″x3″x8-1/8″)
Net weight: 1.9 – 2.0 kg (4.1 – 4.4 lbs)
