Makita 6.35mm (1/4″) 220 N·m (1,950 in.lbs.) Cordless Impact Driver 40Vmax XGT™ Li-ion [Kit] TD001GD201
Features:
• High Power 220 N·m
• Genuine solution for high demand industrial users
• Having excellent ability to perform heavy-duty continuous tightening; Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws
• Delivers up to 50% higher work speed than DTD171
• Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes)
• Improved bolt modes for more convenience in tightening machine screws
• Constant speed control maintains fastening torque by preventing the rotation speed reduction caused by decreased battery capacity
• New one-touch bit installation; In order to prevent the bit from unexpectedly falling off, more effective mechanism has been realized by increasing the spring load of the sleeve holding spring and by adding a coil spring not to increase resistance against insertion of the bit
• One-touch speed selector provides precise fastening control for a wide range of applications
• Enhanced anvil holder rigidity; Material change from Needle bearing to Ball bearing provides reduction of bit wobbling
• Variable speed control by trigger for precise fastening in a wide variety of applications
• Built-in LED light illuminates the work area
• Phosphorescent bumper glows in dark places
• Ergonomically designed handle with rubberized soft grip for increased comfort
• Reversing switch is conveniently located
• Electric brake for maximum productivity
• Durable, reversible belt clip convenient for temporary tool hanging
• eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• Battery protection circuit protects against overloading, over-discharging and over-heating

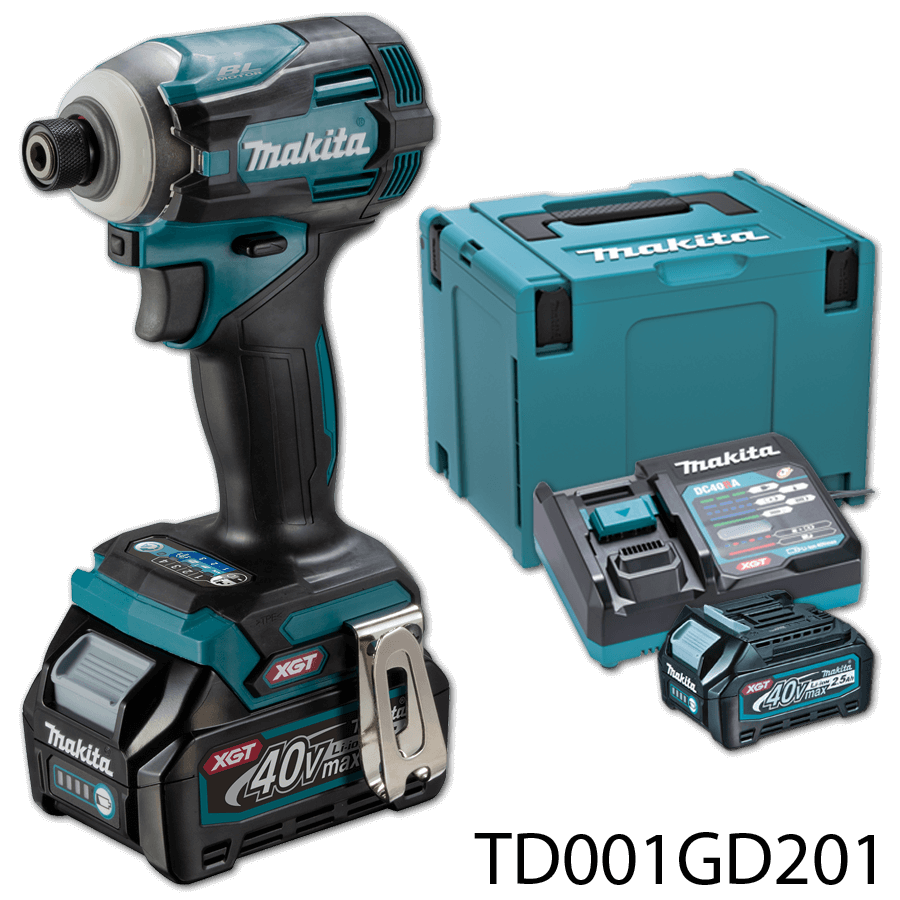

Standard Equipments:
Belt Clip, Hand Strap, Battery (BL4025 x2), Fast Charger (DC40RA)
Specifications:
Capacity: machine screw: m4 – m8 (5/32″ – 5/16″)
Standard bolt: m5 – m16 (3/16″ – 5/8″)
High strength bolt: m5 – m14 (3/16″ – 9/16″)
Coarse thread (in length): 22 – 125 mm (7/8″ – 4-7/8″)
Hex shank: 6.35 mm (1/4″)
No load speed (rpm): max / hard / mid / soft / wood / bolt (1) / bolt (2) / bolt (3) / t (1) / t (2) mode: 0 – 3,700 / 3,200 / 2,100 / 1,100 / 1,800 / 2,500 / 3,700 / 3,700 / 2,400 / 3,700
Impacts per minute (ipm): max / hard / mid / soft / wood / bolt (1) / bolt (2) / bolt (3) / t (1) / t (2) mode: 0 – 4,400 / 3,600 / 2,600 / 1,100 / 4,400 / n/a / 4,400 / 4,400 / n/a / 2,600
Max fastening torque: 220 n·m (1,950 in.Lbs.)
Fastening torque: hard / mid / soft: 170 / 50 / 20 n·m (1,510 / 440 / 180 in.Lbs.)
Max output: 600 w
Vibration level: impact tightening of fasteners of the maximum capacity of the tool: 10.0 m/s²
Vibration k factor: impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s²
Sound pressure level: 96 db(a)
Sound power level: 107 db(a)
Noise k factor 3 db(a)
Dimensions (l x w x h): w/ bl4025: 120x86x245 mm (4-3/4″x3-3/8″x9-5/8″)
W/ bl4040: 120x86x250 mm (4-3/4″x3-3/8″x9-7/8″)
Net weight: 1.7 – 2.0 kg (3.7 – 4.4 lbs.)
