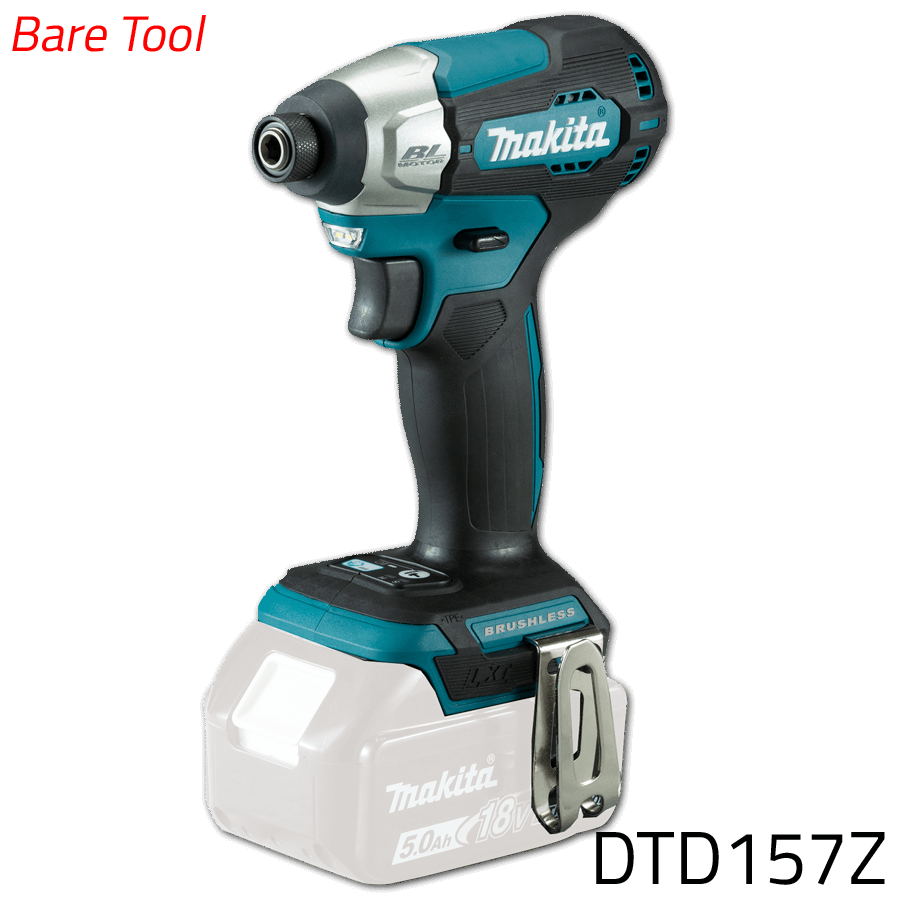

Makita 6.35mm (1/4″) 40 N·m (1,240 in.lbs.) Cordless Impact Driver 18V LXT® Li-Ion [Bare Tool] DTD157Z
Features:
• Anti-bit wobbling structure
• Two ball bearings are used to securely hold the anvil for reduced bit wobbling
• Despite the internal design change for the rigidity, redesigned gear section makes the overall length 2 mm shorter than DTD155
• Compact body for easy screwdriving in narrow space
• 3-mode operation for A-mode / Hard mode / Soft mode for multiple applications
• A-mode feature helps eliminate “screw cam-out” and “cross threading” by driving at low speed until tightening begins
• Variable speed (0-1,300/0-3,000 RPM & 0-2,000/0-4,100 IPM) for a wide range of fastening applications
• BL motor is electronically controlled to optimize battery energy use for longer run time per charge
• BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
• BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
• Compact and lightweight for reduced operator fatigue
• Ideal for working in tight spaces
• Best possible ergonomic handle for screwdriving applications
• Ergonomically designed handle with soft grip provides increased comfort
• Built-in twin LED light with preglow and afterglow functions illuminates the work area
• eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
• Convenient 6.35 mm (1/4″) hex chuck for quick bit changes
• Electric brake for maximum productivity
• Aluminum hammer case creates the impression of rigidity of the machine. Reversing switch is conveniently located. Durable, reversible belt clip convenient for temporary tool hanging
Standard Equipments:
Belt Clip
Specifications:
Capacity: machine screw: m4 – m8 mm (5/32 – 5/16″)
Standard bolt: m5 – m14 (3/16 – 9/16″)
High strength bolt: m5 – m12 (3/16 – 1/2″)
Coarse thread (in length): 22 – 90 mm (7/8 – 3-1/2″)
Hex shank: 6.35 mm (1/4″)
No load speed (rpm): hard / soft: 0 – 3,000 / 0 – 1,300
Impacts per minute (ipm): hard / soft: 0 – 4,100 / 0 – 2,000
Max fastening torque: 140 n·m (1,240 in.Lbs.)
Max output: 240 w
Vibration level: impact tightening of fasteners of the maximum capacity of the tool: 11.5 m/s²
Vibration k factor: impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s²
Sound pressure level: 95 db(a)
Sound power level: 106 db(a)
Noise k factor: 3 db(a)
Dimensions (l x w x h): w/o battery: 133 x 81 x 185 mm (5-1/4 x 3-3/16 x 7-1/4″)
W/ bl1815n / bl1820b: 133 x 81 x 214 mm (5-1/4 x 3-3/16 x 8-3/8″)
W/ bl1830b / bl1840b / bl1850b / bl1860b: 133 x 81 x 232 mm (5-1/4 x 3-3/16 x 9-1/8″)
Net weight: 1.2 – 1.5 kg (2.6 – 3.3 lbs.)
