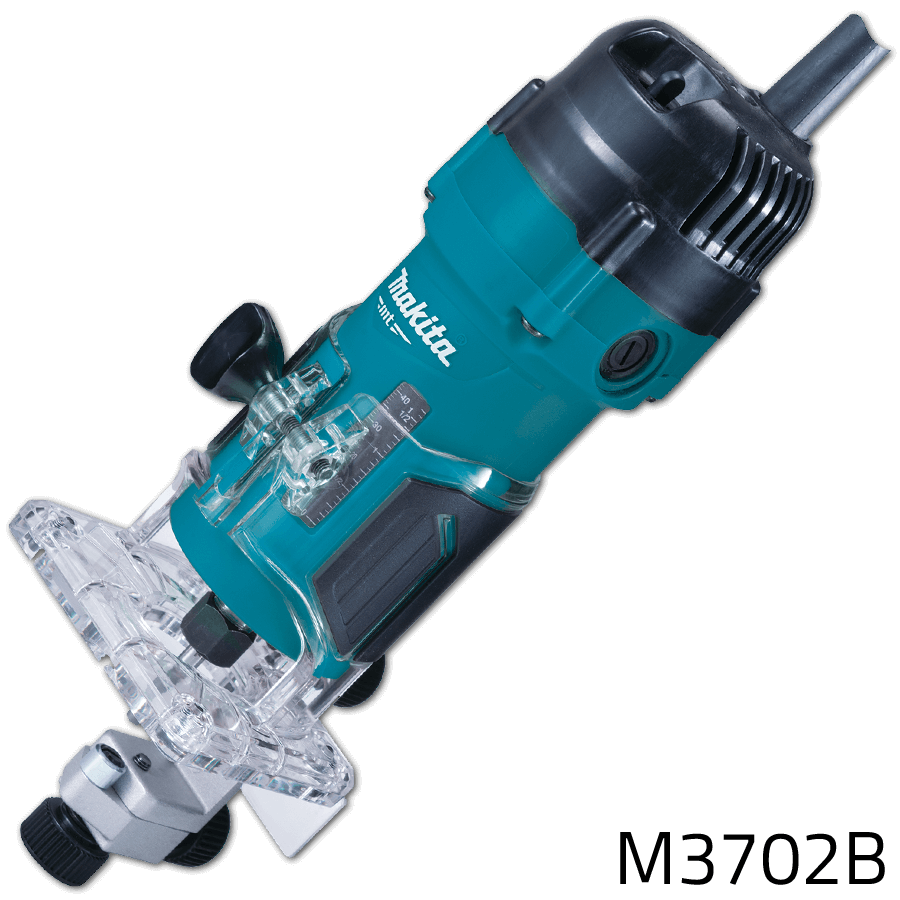

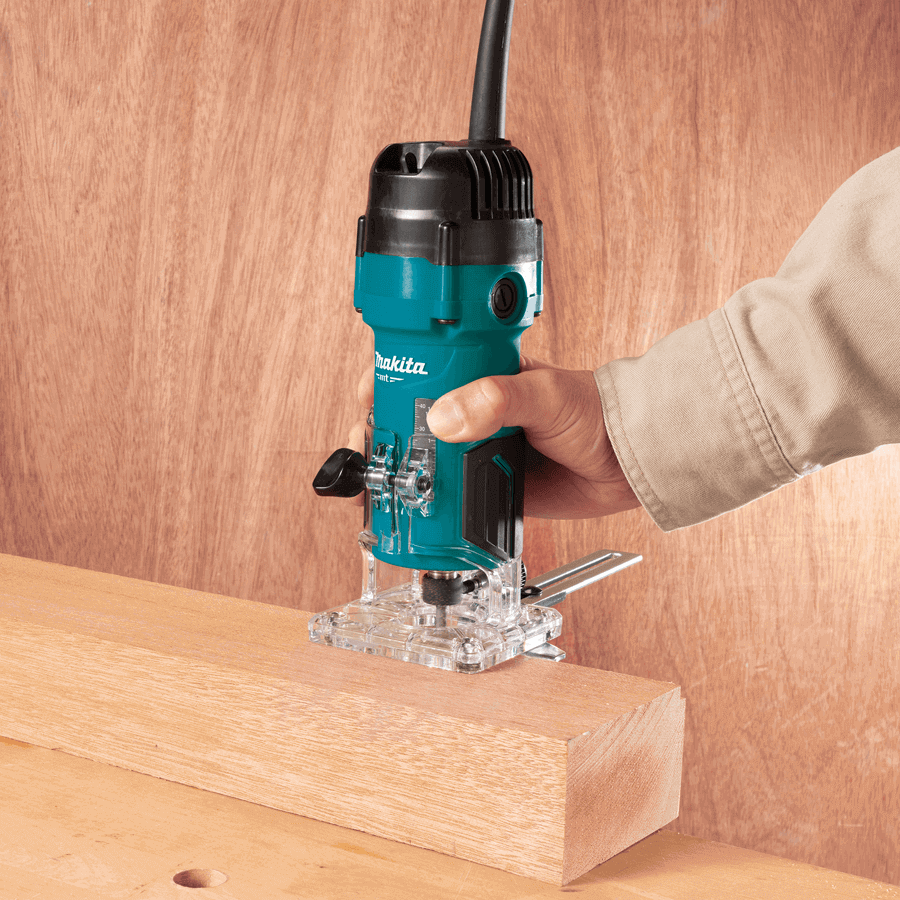

Makita 6/ 6.35 mm (-/ 1/4″) Fixed Base Trimmer 530W M3702B
Features:
• Anti-restart function minimizes accidental start-up
• Soft start function minimizes start-up shock and makes the tool start smoothly
• Super smooth rack-and-pinion depth adjustment
• High performance and durability at less expense
• 530 W motor delivers 35,000 RPM for smooth trimming and light routing applications
• Transparent base for a clear view of the trimming edge
• Top-mounted power cord stays out of the way for easier operation
• Slim design with rubberized grip for comfort
• Smooth rack-and-pinion mechanism for fine depth adjustment
• Ergonomic slim body design for added comfort and control
• Toggle switch for easy operation
• Externally accessible brushes for greater serviceability
• Double insulated
Standard Equipments:
Collet Cone, Trimmer Guide, Straight Guide Assembly, Templet Guide, Straight Bit, Chip Deflector, Wrench
Specifications:
Continuous rating input: 530w
Collet size: 6/ 6.35 mm (n/a/ 1/4″)
Base inner: 35 mm (1-3/8″)
No load speed (rpm): 35,000
Plunge capacity: 0 – 42 mm (0 – 1-5/8″)
Vibration level :rotation w/o load: 2.5 m/s² or less
Vibration k factor: rotation w/o load: 1.5 m/s²
Sound pressure level: 83 db(a)
Sound power level: 94 db(a)
Noise k factor: 3 db(a)
Dimensions (l x w x h): 82 x 90 x 211 mm (3-1/4 x 3-1/2 x 8-5/16″)
Net weight: 1.5 kg (3.3 lbs.)
Power supply cord: 2.0 m (6.6 ft)
