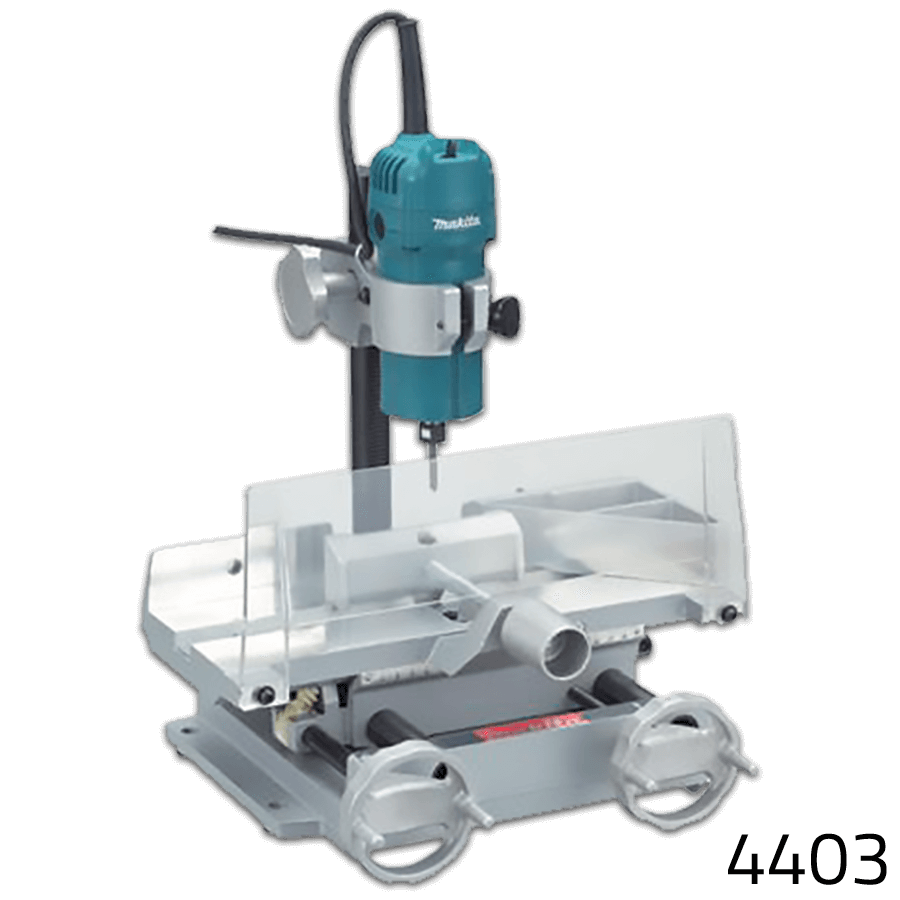

Makita 6mm Sash Router 530W 4403
Features:
• Mills and drills aluminum for sashes
• Trimmer model 3709 used as motor unit
• Large transparent chip guard for operator’s safety
• Base travels side to side.
• Base travels forward and backward.
Standard Equipments:
Sash router bit (drill point), Angle Gauge, Wrench x2, Oil supply (country-specific), Collet cone (6mm or 1/4″)
Specifications:
Continuous rating input: 530w
Capacity: collet : 6 mm or 1/4″
Max width of work: 123 mm (4-7/8″)
Max width of work: (45°) 77 mm (3″)
Max height of work: 185 mm (7-1/4″)
Transverse travel of table (bed): 113 mm (4-1/2″)
Longitudinal travel of table (bed): 73 mm (2-7/8″)
No load speed (rpm): 30,000
Dimensions (l x w x h): 327x350x355 mm (12-7/8″x13-13/16″x14″)
Net weight: 16 kg (35.3 lbs)
Power supply cord: 2.5 m (8.2 ft)
