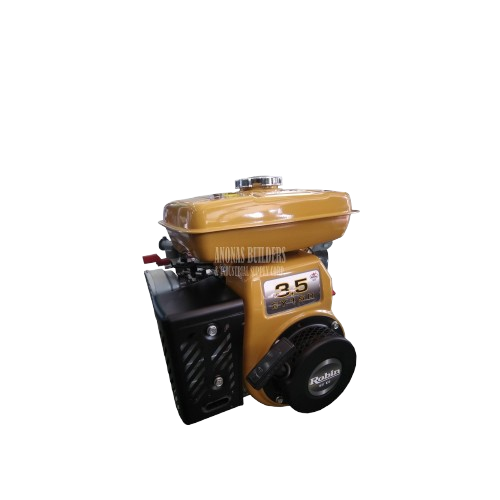

Robin Gasoline Engine EY15-3D (Standard) 3.5hp

Type: Air-Cooled 4 cycle, single cylinder, side, valve, horizontal PTO shaft
Bore x Stroke mm(in.): 63 x 46 (2.48×1.81)
Piston displacement cc(cu.in.): 143(8.73)
Continuos output kW(HP)/rpm: 2.0(2.7)/3600
Maximum output kW(HP)/rpm: 2.6(3.5)/4000
Maximum torque N.m(kgf.m)/rpm: 6.7(0.68)/2800
Direction of rotation: Counter clockwise as viewed from PTO shaft side
Fuel: Automovile (unleaded) gasoline
Fuel tank capacity liter(US gal.): 2.8(0.74)
Lubricant: Engine oil SAE 10W-30, 20W, 30W
Lubrication: Mechanical splashing type
Lubricating oil capacity liter(US gal.): 0.6(0.156)
Carburetor: Float type
Starter: Recoil starter
Ignition System: Transistorised
Spark plug: NGK BP-6HS
Governor: Centrifugal flyweight type
Dry weight kg(lb): 13.4(29.55)
Dimension LxWxH (mm): 294x319x368
