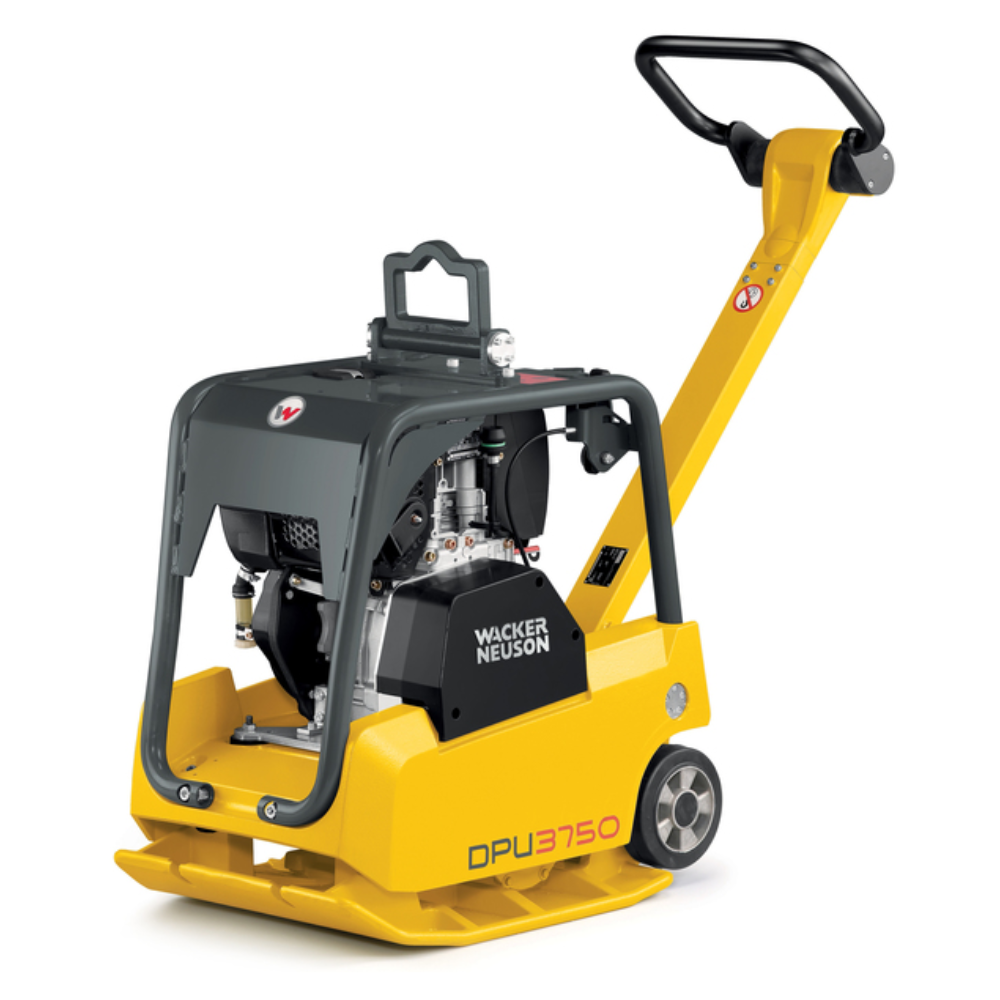

Wacker Neuson DPU 3750H, Reversible Vibratory Plate Compactor

Operating Weight : 247 kgs
Base Plate Size (WxL) : 500 x 703 mm
Machine Height (w/o center pole) : 771 mm
Centrifugal Force : 37 kN
Frequency : 90 Hz
Max. Travel Speed-Forward : 27 m/min
(depending on soil & environmental force)
Max. Compacted Area : 810 m²/hr
(depending on soil & environmental force)
Engine : Hatz/IB30
: Air-cooled, single cylinder
4-cycle diesel engine
Max. Power Output : 6.8 kW @ 3600 rpm
Fuel Consumption : 0.6 L/hr
